Mazda 3 Service Manual: Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

Mazda 3 Service Manual / Electrical / Ignition / Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable..

2. Remove the column cover..

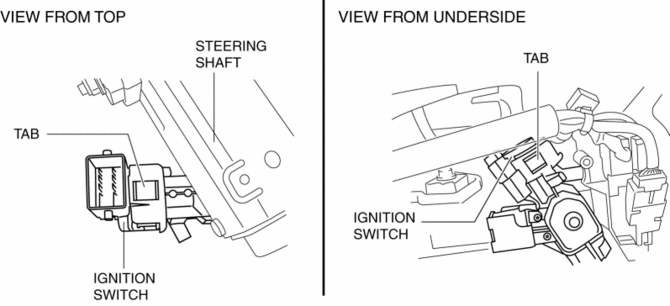

3. Detach the tab.


4. Pull the pin in the direction of the arrow shown in the figure and release the lock.


5. Disconnect the ignition switch connector and key interlock solenoid connector.


6. Remove the tabs.


7. Remove the ignition switch from the steering shaft.

8. Install in the reverse order of removal.

Ignition Switch Inspection [Without Advanced Keyless Entry And Push Button Start System]
1. Disconnect the negative battery cable.. 2. Remove the column cover.. 3. Remove the ignition switch.. 4. Verify that the continuity between the ignition switch terminals is as indicated in t ...
