Mazda 3 Owners Manual: Bottle Holder

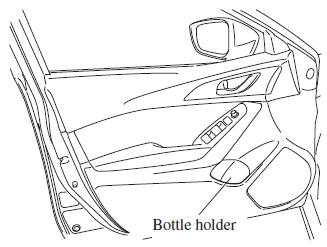

Bottle holders are on the inside of the doors.
| CAUTION Do not use the bottle holders for containers without caps. The contents may spill when the door is opened or closed. |
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents s ...
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the ...
