Mazda 3 Service Manual: Joint Shaft Inspection
1. Verify that there is no torsion or cracks on the joint shaft.
-
If there is any malfunction, replace the joint shaft.

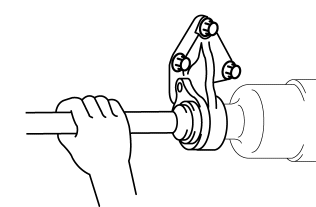

2. Turn the joint shaft by hand and verify that the bearing rotates smoothly.
-
If there is any malfunction, replace the joint shaft.
Joint Shaft Disassembly [Skyactiv G 2.0]
1. Disassemble in the order indicated in the table.
1
Snap ring
2
Joint shaft component
.
3
Dust seal
...
Joint Shaft Removal/Installation [Mzr 2.0, Mzr 2.3 Disi Turbo, Mzr 2.5]
CAUTION:
Performing the following procedures without first removing the ABS wheel-speed
sensor may possibly cause an open circuit in the wiring harness if it is pulled
by mistake. Before ...
