Mazda 3 Service Manual: Magnetic Clutch Adjustment [Full Auto Air Conditioner]

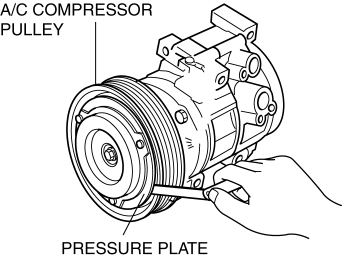

1. Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.
2. Verify the clearance.
-

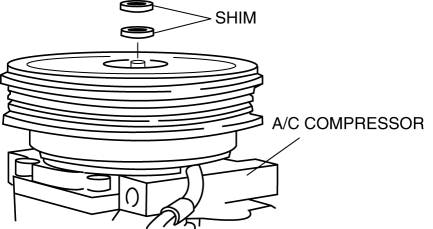

If not within the specification, remove the pressure plate and adjust the clearance by changing the shim (0.2 mm {0.008 in}, 0.5 mm {0.02 in}
) or the number of shims.
-
Clearance
-
0.35—0.65 mm {0.014—0.025 in}
