Mazda 3 Service Manual: Wheel Hub Component Inspection

Mazda 3 Service Manual / Suspension / Wheel Hub Component Inspection

Wheel Bearing Excessive Play Inspection

1. Remove the brake caliper component and disc plate..

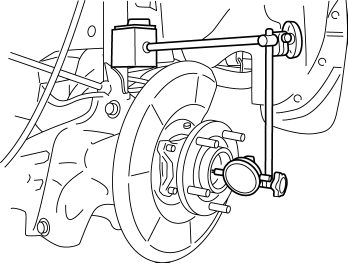

2. Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.


Suspension SST
49 T034 1A0 Coil spring compressor set 49 0180 510B Preload measuring attachment 49 B034 001 Guide ...

Wheel Hub Component Removal/Installation
CAUTION: Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before ...
