Mazda 3 Service Manual: Wheel Hub, Steering Knuckle Inspection

Mazda 3 Service Manual / Suspension / Front Suspension / Wheel Hub, Steering Knuckle Inspection

Wheel Bearing Excessive Play Inspection

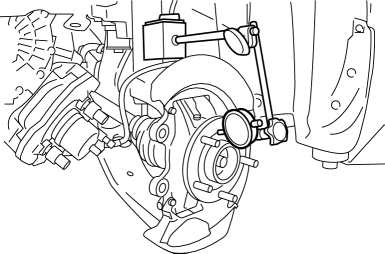

1. Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.


Wheel Hub, Steering Knuckle Disassembly/Assembly
1. Disassemble in the order indicated in the table. 1 Dust Cover 2 Wheel hub component . 3 Retaining clip ...

Wheel Hub, Steering Knuckle Removal/Installation
CAUTION: Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before ...
