Mazda 3 Service Manual: Washer Motor Removal/Installation

Mazda 3 Service Manual / Body / Wipers, Washers / Washers / Washer Motor Removal/Installation

4SD

1. Disconnect the negative battery cable..

2. Remove the front mudguard (RH)..

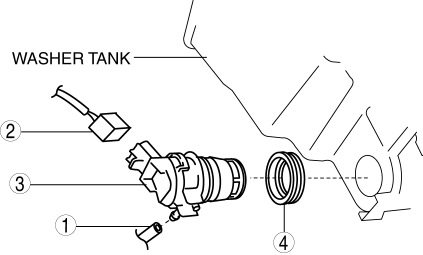

3. Remove in the order indicated in the table.



1

Windshield washer hose

2

Washer motor connector

3

Washer motor

4

Grommet


4. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable..

2. Remove the front mudguard (RH)..

3. Remove in the order indicated in the table.



1

Windshield washer hose

2

Rear washer hose

3

Washer motor connector

4

Washer motor

5

Grommet


4. Install in the reverse order of removal.

Washer Motor Inspection
1. Disconnect the negative battery cable.. 2. Remove the front mudguard (RH).. 3. Disconnect the washer motor connector. 4. After connecting washer motor terminal A to the positive battery termi ...

Washer Tank Removal/Installation
Vehicles with the washer fluid-level sensor 1. Disconnect the negative battery cable.. 2. Remove the front bumper.. 3. Remove in the order indicated in the table. 1 ...
