Mazda 3 Service Manual: Oil Control Valve (OCV) Removal/Installation [Mzr 2.0, Mzr 2.5]

Mazda 3 Service Manual / Steering / Linkage, Power / Oil Control Valve (OCV) Removal/Installation [Mzr 2.0, Mzr 2.5]

1. Remove the battery cover..

2. Disconnect the negative battery cable..

3. Remove the plug hole plate..

4. Disconnect the wiring harness.

5. Remove the ignition coils..

6. Remove the ventilation hose.

7. Remove the oil level gauge.

8. Remove the cylinder head cover..

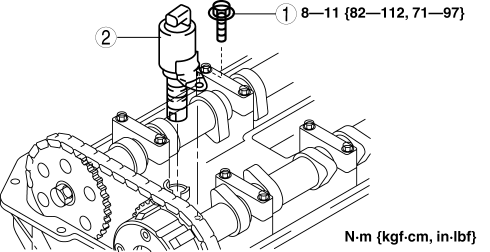

9. Remove in the order indicated in the table.

10. Install in the reverse order of removal.



1

OCV installation bolt

2

OCV


Oil Control Valve (OCV) Inspection [Skyactiv G 2.0]
Coil Resistance Inspection 1. Remove the battery cover.. 2. Disconnect the negative battery cable.. 3. Remove the plug hole plate.. 4. Disconnect the OCV connector. 5. Measure the resistance ...

Oil Control Valve (OCV) Removal/Installation [Mzr 2.3 Disi Turbo]
1. Remove the battery cover.. 2. Disconnect the negative battery cable.. 3. Remove the charge air cooler.. 4. Remove the ignition coils.. 5. Disconnect the ventilation hose from the cylinder h ...
