Mazda 3 Service Manual: Variable Intake Air Solenoid Valve Inspection [Mzr 2.0, Mzr 2.5]

Mazda 3 Service Manual / Engine / Intake / Variable Intake Air Solenoid Valve Inspection [Mzr 2.0, Mzr 2.5]

Airflow Inspection

1. Remove the battery cover..

2. Disconnect the negative battery cable..

3. Remove the variable intake air solenoid valve..

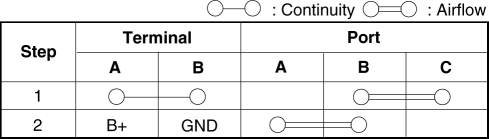

4. Inspect airflow between the ports under the following conditions.



Variable Intake Air Shutter Valve Actuator Inspection [Mzr 2.0, Mzr 2.5]
Operation Inspection 1. Remove the air hose.. 2. Disconnect the vacuum hose from the variable intake air shutter valve actuator. 3. Connect a vacuum pump to the variable intake air shutter v ...

Manifold Absolute Pressure (Map) Sensor Inspection [Mzr 2.0, Mzr 2.5]
Voltage Inspection 1. Connect the M-MDS to the DLC–2. 2. Switch the ignition to ON. 3. Verify that the MAP sensor output voltage (PID: MAP) is within the specification.. If not as sp ...
