Mazda 3 Service Manual: Relay Block Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

Mazda 3 Service Manual / Accessories / Security & Keyless Entry / Relay Block Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable..

2. Remove the following parts:

a. Driver-side front scuff plate.

b. Driver-side front side trim.

c. Hood release lever.

d. Upper panel.

e. Shift knob (MTX)(See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].)(See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

f. Selector lever knob (ATX)(See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

g. Shift panel.

h. Side wall.

i. Console.

j. Lower panel.

k. Knee bolster.

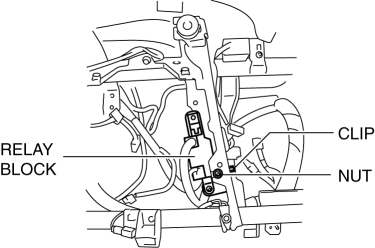

3. Remove the nut and clip.

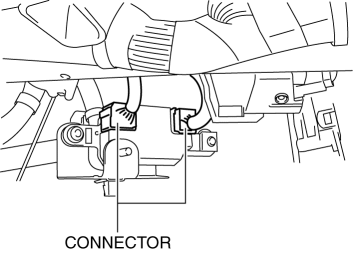

4. Disconnect the connectors.


5. Remove the nut and clip.

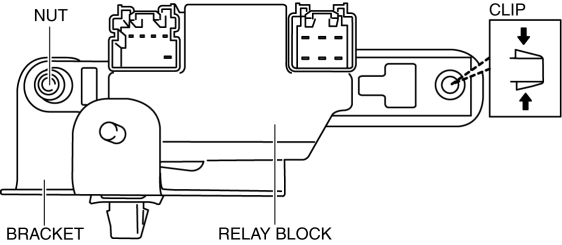

6. Remove the relay block from the bracket.

7. Install in the reverse order of removal.
