Mazda 3 Service Manual: Manifold Absolute Pressure (Map) Sensor/Boost Air Temperature Sensor Removal/Installation [Mzr 2.3 Disi Turbo]
NOTE:
-
Because the boost air temperature sensor is integrated in the MAP sensor, replacing the boost air temperature sensor includes replacement of the MAP sensor/boost air temperature sensor.
1. Remove the battery cover..
2. Disconnect the negative battery cable..
3. Remove the dipstick pipe..

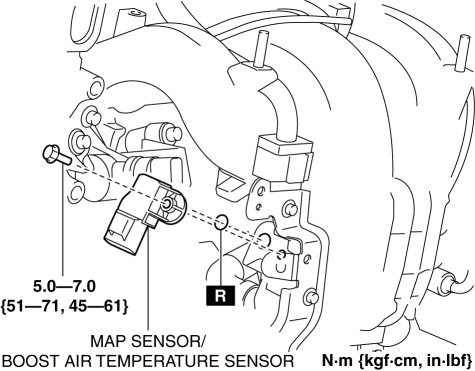

4. Disconnect the MAP sensor/boost air temperature sensor connector.
5. Remove the MAP sensor/boost air temperature sensor.
6. Install in the reverse order of removal.
