Mazda 3 Owners Manual: Voice Recognition Learning Function (Speaker Enrollment) (Type A)

Mazda 3 Owners Manual / Interior Features / Bluetooth / Bluetooth® / Voice Recognition Learning Function (Speaker Enrollment) (Type A)

The voice recognition learning function enables voice recognition appropriate to the characteristics of the user's voice. If the recognition of the voice input commands to the system is not adequate, this function can largely improve the system's voice recognition of the user. If your voice can be recognized sufficiently without using this function, you may not realize the added benefit of the function. To register your voice, the voice input command list must be read out. Read out the list when the vehicle is parked. Perform the registration in as quiet a place as possible . The registration must be performed completely. The required time is a few minutes. The user needs to be seated in the driver's seat with the voice input command list for voice recognition learning open to the page indicated below.

When voice recognition learning is done for the first time

  1. Press the pick-up button or talk button with a short press.
  2. Say: [Beep] “Voice training”
  3. Prompt: “This operation must be performed in a quiet environment while the vehicle is stopped. See the owner's manual for the list of required training phrases. Press and release the talk button when you are ready to begin.

    Press the hang-up button to cancel at any time.”

  4. Press the talk button with a short press.
  5. The voice guidance reads out the voice input command number (refer to the voice input command list for voice recognition learning). (Ex. “Please read phrase 1” )
  6. Say: [Beep] “0123456789” (Say the voice input command for voice recognition learning (1 to 8) according to the voice guidance.)
  7. Prompt: “Speaker enrollment is complete.”

NOTE If an error occurred in the voice recognition learning, re-learning can be done by pressing the talk button with a short press.

Voice recognition re-learning

If voice recognition learning has already been done.

  1. Press the pick-up button or talk button with a short press.
  2. Say: [Beep] “Voice training”
  3. Prompt: “Enrollment is enabled/ disabled. Would you like to disable/ enable or retrain?”
  4. Say: [Beep] “Retrain”
  5. Prompt: “This operation must be performed in a quiet environment while the vehicle is stopped. See the owner's manual for the list of required training phrases. Press and release the talk button when you are ready to begin.

    Press the hang-up button to cancel at any time.”

  6. Press the talk button with a short press.
  7. The voice guidance reads out the voice input command number (refer to the voice input command list for voice recognition learning). (Ex. “Please read phrase 1”)
  8. Say: [Beep] “0123456789” (Say the voice input command for voice recognition learning (1 to 8) according to the voice guidance.)
  9. Prompt: “Speaker enrollment is complete.”

NOTE If an error occurred in the voice recognition learning, re-learning can be done by pressing the talk button with a short press.

Voice input command list for voice recognition learning

When reading out, the following points must be observed:

Ex.

“(888) 555-1212” must be spoken “Eight, eight, eight, five, five, five, one, two, one, two.”

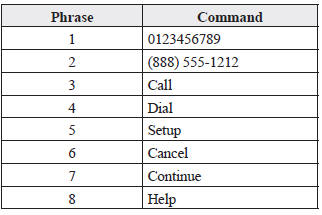

Mazda 3. Voice input command list for voice recognition learning


NOTE

Voice recognition learning on/off

  1. Press the pick-up button or talk button with a short press.
  2. Say: [Beep] “Voice training”
  3. Prompt: “Enrollment is enabled/ disabled. Would you like to disable/ enable or retrain?”
  4. Say: [Beep] “Disable” or “Enable”
  5. When “Disable” is spoken, the voice recognition learning is turned off.

    When “Enable” is spoken, the voice recognition learning is turned on.

  6. Prompt: “Speaker Enrollment is disabled/enabled.”
