Mazda 3 Service Manual: Air Filter Removal/Installation [Mzr 2.0, Mzr 2.5]

Mazda 3 Service Manual / HVAC / General / Air Filter Removal/Installation [Mzr 2.0, Mzr 2.5]

Except for Mexico

1. Remove the fuel-filler pipe protector..

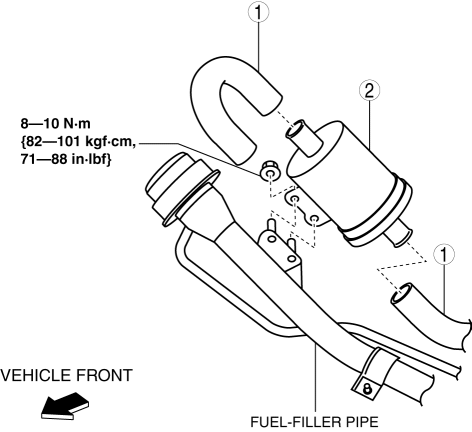

2. Remove in the order indicated in the table.



1

Evaporative hose

2

Air filter


3. Install in the reverse order of removal.
