Mazda 3 Service Manual: Air Fuel Ratio (A/F) Sensor Removal/Installation [Mzr 2.0, Mzr 2.5]

Mazda 3 Service Manual / Engine / Control / Sensors, Switches, Relays / Air Fuel Ratio (A/F) Sensor Removal/Installation [Mzr 2.0, Mzr 2.5]

WARNING:

1. Remove the battery cover..

2. Disconnect the negative battery cable..

3. Remove the plug hole plate..

4. Remove the air cleaner assembly. (MZR 2.5).

5. Disconnect the A/F sensor connector.

6. Remove the A/F sensor using the SST

.

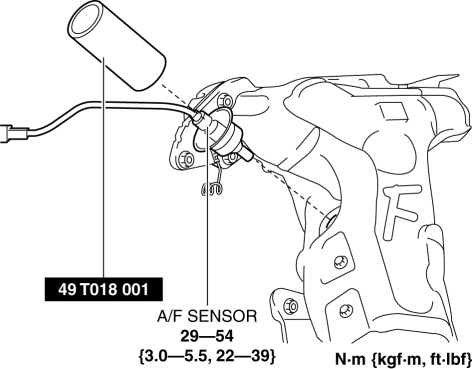

MZR 2.0

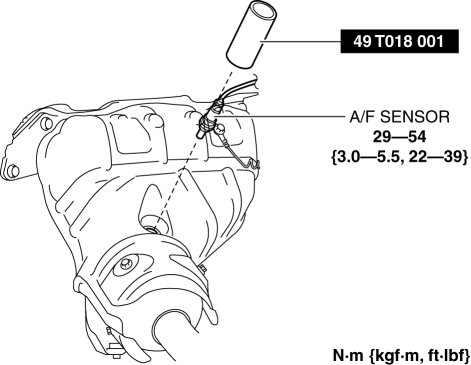

MZR 2.5


7. Install in the reverse order of removal.
