Mazda 3 Service Manual: Catch Tank Inspection [Skyactiv G 2.0]

Mazda 3 Service Manual / Engine / Emissions / Catch Tank Inspection [Skyactiv G 2.0]

1. Remove the catch tank..

2. Plug the catch tank of the purge solenoid valve side.

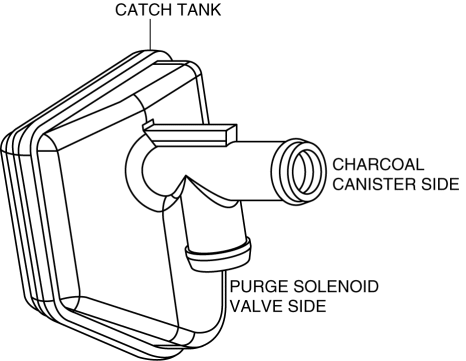

3. Inspect for air leakage when blowing air pressure from charcoal canister side.

Canister Vent (Cv) Solenoid Valve Removal/Installation [Mzr 2.0, Mzr 2.5]
Except for Mexico 1. Remove the battery cover.. 2. Disconnect the negative battery cable.. 3. Remove in the order indicated in the table. 1 CV solenoid valve connect ...

Charcoal Canister Inspection [Mzr 2.0, Mzr 2.5]
Leakage Inspection 1. Perform the following procedures: Assemble the hose used for inspection to port A. Cover ports B and C with the caps. Except for Mexico Mexico C ...
