Mazda 3 Service Manual: Seat Track Position Sensor Removal/Installation [Two Step Deployment Control System]

Mazda 3 Service Manual / Body / Seats / Seat Track Position Sensor Removal/Installation [Two Step Deployment Control System]

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1min or more

..

3. Remove the front driver’s seat..

4. Remove the front seat slide adjuster..

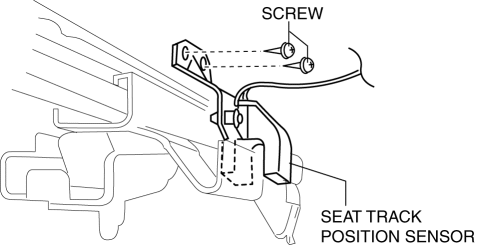

5. Remove the screws.


6. Remove the seat track position sensor.

7. Install in the reverse order of removal.
