Mazda 3 Service Manual: Seat Weight Sensor Control Module Removal/Installation [Two Step Deployment Control System]
CAUTION:
-
When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M–MDS..
1. Switch the ignition to off.
2. Disconnect the negative battery cable and wait for 1 min or more
..
3. Disconnect the connectors.

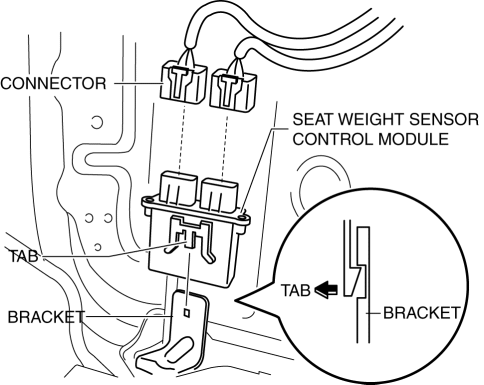

4. Remove the seat weight sensor control module from the bracket by lifting the tab in the direction of the arrow.
5. Install in the reverse order of removal.
6. Switch the ignition to ON.
7. Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
-
If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system..
Seat Weight Sensor Calibration [Two Step Deployment Control System]
CAUTION:
If any of the following work is performed, perform the seat weight sensor
calibration using the M-MDS.
Replacement with a new seat weight sensor
Replacement ...
Seat Weight Sensor Inspection [Two Step Deployment Control System]
CAUTION:
If any of the following work is performed, perform the seat weight sensor
inspection using the M-MDS.
Removal of the passenger-side seat
Loosening and retig ...
