Mazda 3 Owners Manual: Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move the adjustment knob.
NOTE
- When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result of humid air being suddenly cooled.
- The air vents can be fully opened and closed by operating the dial.

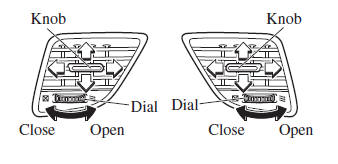

Side Vents
Center Vents
Vent Operation
...
Selecting the Airflow Mode
Dashboard Vents
Defroster and Floor Vents
Dashboard and Floor Vents
Defroster Vents
Floor Vents
...
