Without Bluetooth ® Hands-Free
With Bluetooth ® Hands-Free

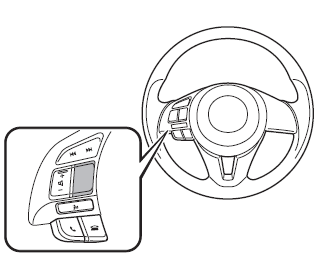

Adjusting the Volume
To increase the volume, press up the volume switch ( +).
To decrease the volume, press down the volume switch ( -).
Seek Switch
AM/FM radio
Press the seek switch ( ,
). The radio
switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch ( ,
) to
seek all usable stations at a higher or lower
frequency whether programmed or not.
Radio stations which have been previously
stored in the auto memory tuning (Type
A)/favorite radio (Type B) can be called
up by pressing the seek switch ( ,
)
while any radio station stored in the auto
memory tuning (Type A)/favorite radio
(Type B) is being received. Radio stations
can be called up in the order they were
stored with each press of the switch
( , ).
USB Audio/Bluetooth ® Audio /CD
Press the seek switch ( ) to
skip forward
to the beginning of the next track.
Press the seek switch ( ) within a
few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch ( ) after a
few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch ( ,
) to
continuously switch the tracks up or down.
Pandora ® /Aha™/Stitcher™ Radio (Type B)
Press the seek switch ( ) to
skip forward
to the beginning of the next track.
Press and hold the seek switch ( )
to
evaluate the playback of the current song
as “Like”.
Press and hold the seek switch ( )
to
evaluate the playback of the current song
as “Dislike”.
Mute Switch *
Press the mute switch ( ) once
to mute
audio, press it again to resume audio
output.
NOTE If the ignition is switched off with the audio muted, the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the audio
again, press the mute switch ( ).
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Type A
*1 The range varies depending on the type
of gauge.
Type B
*1 The ...
