Subaru Solterra 2023-2026 Owner's Manual: Electronic sunshade

In the Subaru Solterra, the electronic sunshade is conveniently operated using the overhead control switches, allowing you to regulate sunlight and cabin brightness with ease and precision.

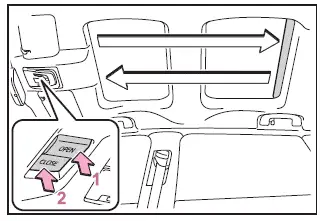

Operating the electronic sunshade

1. Open*
2. Close*

*: To stop the electronic sunshade at any intermediate position in the Subaru Solterra, lightly press either side of the control switch during operation.

■ The electronic sunshade can be operated when

The electronic sunshade in the Subaru Solterra is functional when the power switch is in the ON position, ensuring system readiness during normal vehicle use.

■ Jam protection function for the electronic sunshade

• If an obstruction is detected between the sunshade and its frame while closing, the Subaru Solterra system automatically halts movement and slightly reopens the sunshade to prevent damage or injury.
• After the jam protection function is triggered, pressing the "CLOSE" side again will not immediately resume closing until the reverse motion has completely stopped.
• Under certain driving conditions or external impacts, the electronic sunshade in the Subaru Solterra may briefly reverse direction as part of its safety response.

■ When the electronic sunshade does not close normally

If the electronic sunshade in the Subaru Solterra does not function correctly, perform the following initialization procedure to restore proper operation:

1. Turn the power switch to ON.

2. Press and hold the "CLOSE" side of the switch continuously.

The sunshade will move toward the nearly closed position, pause, then automatically reverse direction before closing completely.

If the switch is released prematurely, the initialization process must be restarted from the beginning.

If automatic operation still does not function correctly after completing these steps, it is recommended to have the Subaru Solterra inspected by an authorized SUBARU dealer.

WARNING

Follow all safety precautions carefully when operating the electronic sunshade in the Subaru Solterra.

Failure to comply may result in serious injury or fatal accidents.

■ Opening and closing the electronic sunshade

• Always confirm that no passengers or objects are positioned where they could be caught during operation of the electronic sunshade in the Subaru Solterra.

• Do not allow children to operate the electronic sunshade, as improper use could result in severe injury.

■ Jam protection function

• Never intentionally use any part of your body to activate the jam protection feature in the Subaru Solterra.
• The jam protection system may not respond if an object becomes trapped just before full closure. Additionally, the function may not activate while the switch is continuously pressed.

  Always ensure that hands, fingers, and objects are kept clear of the sunshade path.

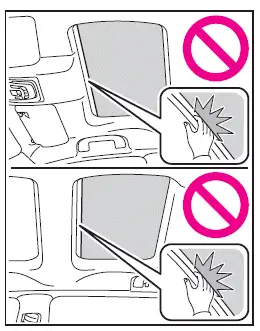

■ To prevent burns or injuries

Avoid touching the area between the glass roof and the electronic sunshade in the Subaru Solterra. This space can become extremely hot after prolonged exposure to sunlight, and contact may result in burns or injury.

Always exercise caution when operating the sunshade, especially in hot weather conditions.

The electronic sunshade system in the Subaru Solterra enhances cabin comfort by allowing precise light control while integrating advanced safety features for reliable and secure operation.
