Mazda 3 Service Manual: Sunroof Switch Inspection
NOTE:
-
The sunroof switch is together with the front map light.
1. Disconnect the negative battery cable..
2. Remove the map light from the headliner..

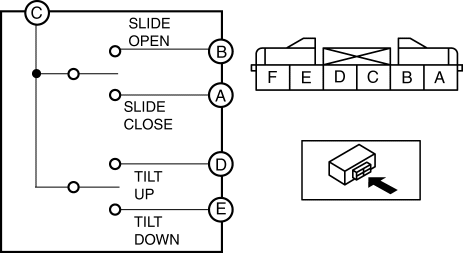

3. Inspect for continuity between the sunroof switch terminals using an ohmmeter.
-
If not as specified, replace the sunroof switch.
Sunroof Unit Removal/Installation
CAUTION:
If the sunshade is forced close while the sunroof is open, the sunshade could
be damaged.
1. Disconnect the negative battery cable..
2. Remove the rain sensor cover. (Vehi ...
Sunroof Switch Removal/Installation
NOTE:
The sunroof switch is together with the front map light.
1. Disconnect the negative battery cable..
2. Remove the map light from the headliner..
3. Install in the reverse order ...
