Mazda 3 Service Manual: Air Filter Inspection [Mzr 2.0, Mzr 2.5]

Mazda 3 Service Manual / Engine / Intake / Air Filter Inspection [Mzr 2.0, Mzr 2.5]

Except for Mexico

Airflow inspection

1. Remove the air filter..

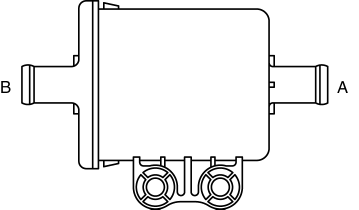

2. Blow from port A and verify that there is airflow from port B.


3. Blow from port B and verify that there is airflow from port A.
