Mazda 3 Service Manual: Air Intake Actuator Inspection [Full Auto Air Conditioner]

Mazda 3 Service Manual / Engine / Intake / Air Intake Actuator Inspection [Full Auto Air Conditioner]

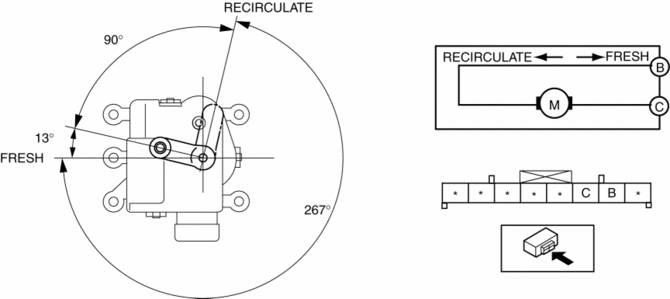

1. Connect battery positive voltage to air intake actuator terminal B (or C), connect terminal C (or B) to ground, and then verify that the air intake actuator operates as shown in the table.



Terminal

Air intake actuator operation

B

C

B+

Ground

FRESH → RECIRCULATE

Ground

B+

RECIRCULATE → FRESH


Air Filter Removal/Installation [Mzr 2.0, Mzr 2.5]
Except for Mexico 1. Remove the fuel-filler pipe protector.. 2. Remove in the order indicated in the table. 1 Evaporative hose 2 Air filter ...

Air Intake Actuator Inspection [Manual Air Conditioner]
1. Connect battery positive voltage to air intake actuator terminal B (or C), connect terminal C (or B) to ground, and then verify that the air intake actuator operates as shown in the table. ...
