Subaru Solterra 2023-2026 Owner's Manual: Front passenger occupant classification system

Subaru Solterra 2023-2026 Owner's Manual / For safety and security / For safe use / Front passenger occupant classification system

The Subaru Solterra is equipped with an advanced front passenger occupant classification system that continuously monitors the status of the front passenger seat. Based on detected conditions, this intelligent system automatically activates or deactivates specific SRS airbags to optimize safety.

This system plays a critical role in ensuring that the Subaru Solterra adapts its safety response depending on whether the seat is occupied by an adult, child, or remains empty.

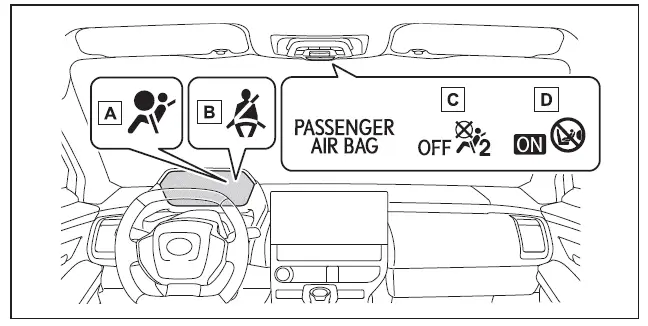

System components

Subaru Solterra front passenger occupant classification system components diagram

  1. SRS warning light
  2. Front passenger's seat belt reminder light
  3. "AIR BAG OFF" indicator light
  4. "AIR BAG ON" indicator light

Front passenger occupant classification system conditions and operation

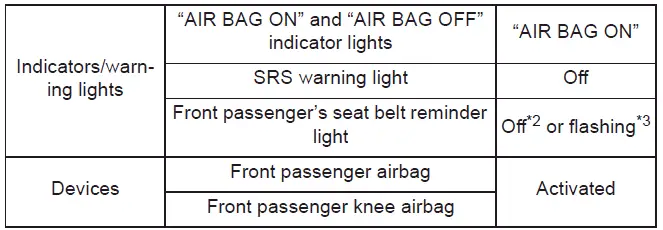

■ Adult*1

Subaru Solterra system detecting adult occupant in front passenger seat

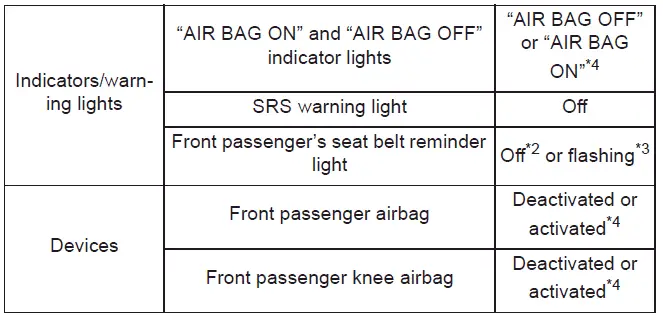

■ Child*4

Subaru Solterra system detecting child occupant in front passenger seat

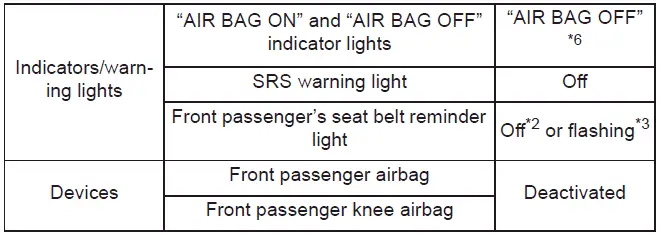

■ Child restraint system with infant*5

Subaru Solterra infant child restraint system detection illustration

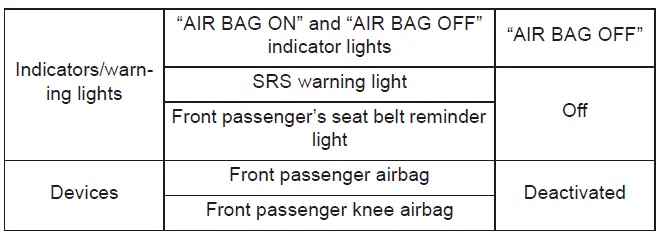

■ Unoccupied

Subaru Solterra empty front passenger seat detection

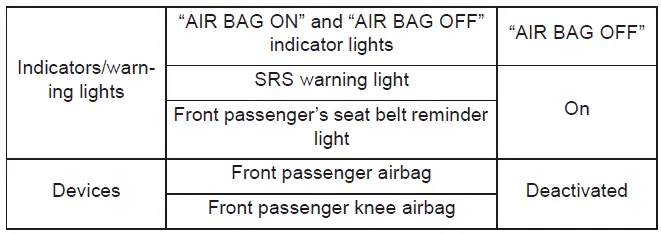

■ System malfunction

Subaru Solterra occupant classification system malfunction indicator

*1:The Subaru Solterra system identifies occupants of adult size as adults. However, individuals with smaller body frames may sometimes not be recognized correctly depending on posture and seating position.
*2:Applies when the front passenger is wearing a seat belt.
*3:Applies when the front passenger is not wearing a seat belt.
*4:For certain children, including those in booster seats or convertible seats, the system may not always correctly identify them as children due to differences in size or posture.
*5:Never install a rear-facing child restraint system on the front passenger seat of the Subaru Solterra. A forward-facing system should only be used when absolutely necessary and must be installed according to proper procedures.
*6:If the indicator lights do not behave as expected, consult the manual for proper installation and usage instructions.

WARNING

■ Front passenger occupant classification system precautions

Strictly follow these precautions when using the occupant classification system in your Subaru Solterra.

Failure to do so may result in serious injury or fatal consequences.

Additional safety insight: The intelligent occupant classification system in the Subaru Solterra ensures that airbag deployment is tailored to real-time conditions, providing a higher level of protection when used correctly and maintained in its original factory configuration.
