Subaru Solterra 2023-2026 Owner's Manual: Heated steering wheel/seat heaters/seat ventilators/ radiant heaters

• Heated steering wheel

In the Subaru Solterra, the heated steering wheel gently warms the grip area, enhancing driver comfort during cold weather and improving overall driving experience.

• Seat heaters

The seat heaters in the Subaru Solterra provide efficient warmth to the seat surfaces, ensuring a comfortable seating environment even in low temperatures.

• Seat ventilators

Seat ventilators maintain optimal airflow by drawing air through the seat upholstery, helping to reduce heat buildup and improve comfort during warmer conditions.

• Radiant heaters

The radiant heaters in the Subaru Solterra are designed to warm the lower body area, particularly the feet of front seat occupants, providing targeted heating for increased comfort.

WARNING

■ To prevent minor burn injuries

Use caution when individuals in the following categories come into contact with heated surfaces in the Subaru Solterra while heating functions are active:

• Infants, young children, elderly individuals, persons with illness, or those with reduced physical sensitivity
• Individuals with sensitive skin
• Individuals experiencing fatigue
• Persons under the influence of alcohol or medication that may cause drowsiness

NOTICE

■ To prevent damage to the seat heaters and seat ventilators

Do not place heavy or uneven objects on the seats of the Subaru Solterra, and avoid inserting sharp items such as needles or pins into the upholstery.

■ To prevent 12-volt battery discharge

Avoid using these heating and ventilation features when the Subaru Solterra EV system is turned off to prevent unnecessary battery drain.

Heated steering wheel

Activate or deactivate the heated steering wheel in the Subaru Solterra using the dedicated control switch.

Each press of the switch cycles through the following operating modes:

AUTO (lit) Hi (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B will illuminate when the heated steering wheel is active in the Subaru Solterra.

■ The heated steering wheel can be used when

The Subaru Solterra power switch is in the ON position.

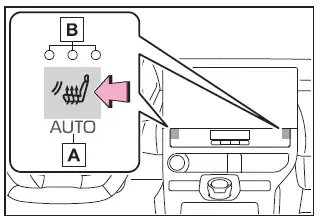

Seat heaters

■ Front

Activate or deactivate the front seat heaters in the Subaru Solterra using the control switch.

Each press cycles through the following modes:

AUTO (lit) Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B will illuminate during operation in the Subaru Solterra.

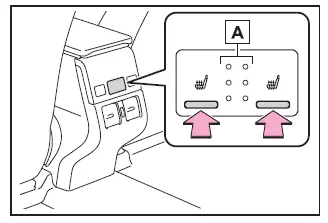

■ Rear (outboard rear seats) (If equipped)

The rear seat heaters in the Subaru Solterra can also be adjusted through multiple levels:

Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

When not in use, return the switch to the neutral position. The indicator A will turn off, confirming deactivation.

■ The seat heaters can be used when

The Subaru Solterra power switch is set to ON.

WARNING

■ To prevent causes of overheating and minor burn injuries

Observe the following safety precautions when using seat heaters in the Subaru Solterra:

• Avoid placing blankets or cushions over heated seats
• Do not use seat heaters for extended periods beyond necessity

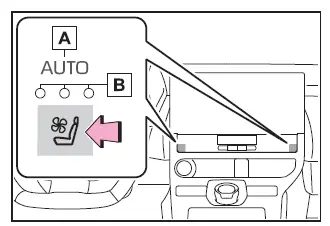

Seat ventilators (front seats)

Activate or deactivate seat ventilators in the Subaru Solterra using the control switch.

Each press cycles through:

AUTO (lit) Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B will illuminate during operation.

■ The seat ventilators can be used when

The Subaru Solterra power switch is in ON.

■ Air conditioning system-linked control mode

When the seat ventilators are set to high level in the Subaru Solterra, their airflow may increase automatically in relation to the air conditioning system fan speed, improving cooling performance.

Radiant heaters

1. Front passenger's side radiant heater
2. Driver's side radiant heater

Activate or deactivate the radiant heaters in the Subaru Solterra using the control switch.

Each press cycles through:

AUTO (lit) Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B will illuminate during operation.

■ The radiant heaters can be used when

The Subaru Solterra power switch is ON and the seatbelt is fastened.

• If the heater surface is continuously touched, the system may automatically turn off. In such cases, reactivate the radiant heater manually.
• Heating performance may require some time to reach the desired temperature.

WARNING

■ To prevent causes of overheating and minor burn injuries

Follow these precautions when using radiant heaters in the Subaru Solterra:

• Do not use radiant heaters longer than necessary
• Keep blankets, bags, or other objects away from the heating area

■ Use while driving

Do not touch or hover your hands or feet over the radiant heaters while driving the Subaru Solterra, as this may distract the driver and increase the risk of an accident.

Improper handling of controls may result in loss of vehicle control and serious injury.

NOTICE

■ To prevent damage to the radiant heaters

Do not insert sharp or pointed objects into the radiant heater area of the Subaru Solterra, as this may damage the system components.

Using these comfort features wisely in the Subaru Solterra enhances driving experience while maintaining safety, efficiency, and long-term system reliability.
