Mazda 3 Service Manual: Front Side Marker/Front Turn Light Bulb Removal/Installation

Mazda 3 Service Manual / Body / Lighting & Horn / Exterior / Front Side Marker/Front Turn Light Bulb Removal/Installation

1. Disconnect the negative battery cable..

2. Slightly bend back the front mudguard..

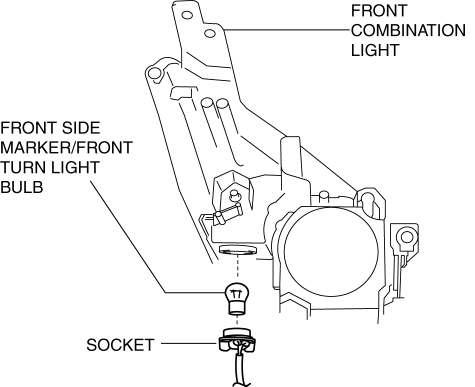

3. Rotate the front side marker/front turn light socket in the direction of the arrow shown in the figure.


4. Remove the front side marker/front turn light bulb.


5. Install in the reverse order of removal.
