Mazda 3 Service Manual: Side Air Bag Sensor No. 2 Removal/Installation [Two Step Deployment Control System]
WARNING:
-
Handling the side air bag sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the side air bag sensor..
1. Switch the ignition to off.
2. Disconnect the negative battery cable and wait for 1 min or more
..
3. Remove the following parts:
a. Rear scuff plate.
b. Rear seat cushion.
c. Rear seat back.
d. Tire house trim.

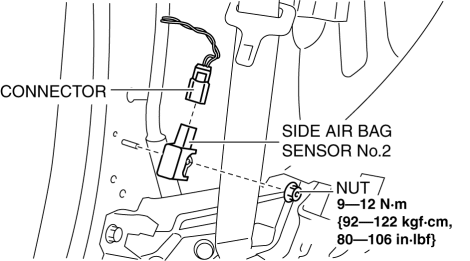

4. Remove the nut.
5. Remove the side air bag sensor No.2.

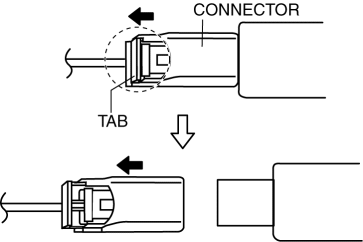

6. Disconnect the connector from the side air bag sensor No.2 by pressing the connector tab in the direction of the arrow.
7. Install in the reverse order of removal.
8. Switch the ignition to ON.
9. Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
-
If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system..
